Top Plate Layout Solution

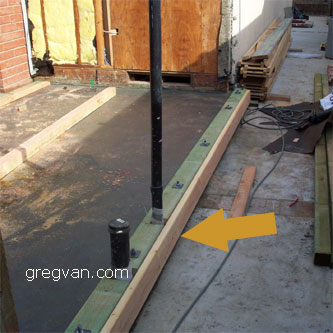

Sometimes the top plate won't fit on the inside and will need to be attached like this to the outside of the bottom plate so the wall studs can be marked and laid out properly.

This is an excellent way to solve layout problems and help framing carpenters layout walls.

If you notice the bottom plate is already bolted down and it tells us that the wall is going to be stick framed or framed in place.

Framing secrets like these have been around for years, but I often run into frustrated carpenters, do-it-yourselfers or homeowners who don't know how to deal with a situation like this.

There are plenty of framing tips on this website that can make the average do-it-yourselfer, look like a seasoned professional.
